Film photomasks play a vital role in modern optical production, semiconductor patterning, PCB development, and various micro-fabrication processes. They serve as high-precision pattern carriers, enabling accurate light-based imaging or etching on different substrates. In this article, I will explain how a Film Photomask works, why it is important, and what technical parameters make our solutions from Ningbo Zhixing Optical Technology Co., Ltd. reliable. Clear structure, easy-to-read language, and professional depth are maintained throughout.

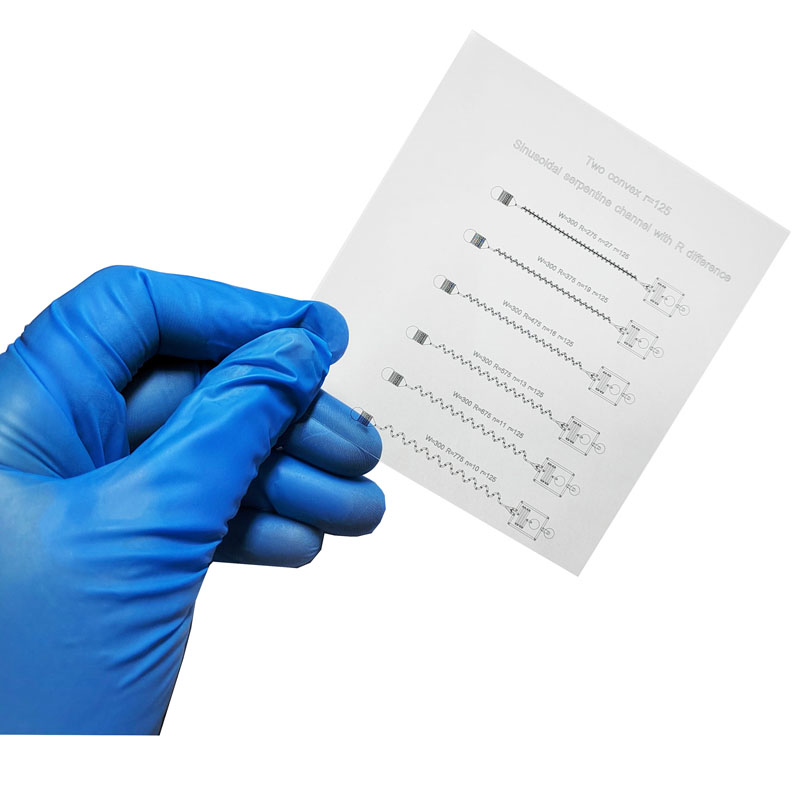

A Film Photomask is a photographic film containing high-density patterns used to transfer images onto wafers, glass, or PCB substrates. It ensures that the intended micro-structures remain sharp, consistent, and repeatable. When light passes through the photomask, the exposed pattern is precisely replicated on the photoresist layer below, enabling mass production with high accuracy.
Its importance grows as industries demand tighter tolerances, faster production cycles, and improved micro-imaging quality.
Film photomasks enhance accuracy, reduce process errors, and enable repeatable micro-patterning. They are widely used in:
Semiconductor prototyping
PCB layout imaging
Microfluidic chip design
Optical instrument calibration
Fine line pattern transfer
Display panel manufacturing
By maintaining uniform density, edge sharpness, and dimensional accuracy, they significantly reduce pattern distortion and improve production yield.
Below are the core parameters provided by Ningbo Zhixing Optical Technology Co., Ltd., ensuring professional-grade quality:
Material Type: High-resolution silver halide or polyester-based film
Resolution: Up to 20,000 dpi imaging
Density Range: Dmax 3.5 – 5.0 (customizable)
Line Width Tolerance: ±5 μm to ±10 μm
Film Thickness: 0.10 mm – 0.18 mm
Pattern Accuracy: ±0.01 mm
Maximum Size: Up to 1000 × 1200 mm
Surface Protection: Anti-scratch & anti-static coating
Application Areas: Semiconductor, PCB, micro-optics, precision machining
| Parameter | Specification |
|---|---|
| Material | High-precision photoplotter film |
| Resolution Capability | 8,000 – 20,000 dpi |
| Density (Dmax) | 3.5 – 5.0 |
| Dimensional Stability | < 0.04% shrinkage |
| Minimum Line Width | 25 μm (custom options available) |
| Film Size Options | A4 to 1000×1200 mm |
| Surface Treatment | Anti-static / Anti-scratch |
| Pattern Accuracy | ±0.01 mm |
These specifications provide both industrial-scale and laboratory-level precision, ensuring stable output for various imaging environments.
Using premium-grade film photomasks brings several benefits:
High precision: Accurate line definition for micro-structures
Cost-effective: Lower production cost compared to glass photomasks
Flexible and fast: Quick turnaround for prototypes and custom patterns
Stable performance: Consistent exposure and reduced distortion
Wide compatibility: Suitable for UV, LED, and laser exposure systems
For industries where microscopic accuracy determines performance, selecting a reliable photomask supplier like Ningbo Zhixing Optical Technology Co., Ltd. becomes essential.
When used in imaging systems, a film photomask ensures:
Crisp and sharp edges
High contrast during exposure
Stable pattern transfer even under long-term usage
Low error rate in repetitive processing
Its performance directly affects yield rate, circuit functionality, and optical component clarity.
A Film Photomask is a patterned film used to transfer images or micro-lines during exposure processes. It works by blocking or transmitting light in specific areas, enabling accurate pattern replication onto wafers, PCB boards, or optical substrates.
A Film Photomask is more cost-effective, faster to produce, and ideal for prototyping or medium-accuracy manufacturing. It provides high resolution and excellent density while remaining flexible for custom designs.
It depends on usage conditions, but high-quality photomasks from Ningbo Zhixing Optical Technology Co., Ltd. offer strong durability, stable dimensional performance, and minimal scratching, ensuring long-term usability.
Yes. With resolutions up to 20,000 dpi and line widths as small as 25 μm, a Film Photomask provides excellent micro-line precision suitable for demanding optical and electronic applications.
For customized Film Photomask solutions, technical consultation, or bulk quotation, feel free to contact Ningbo Zhixing Optical Technology Co., Ltd. Our professional team provides fast response, stable quality, and reliable cooperation.
