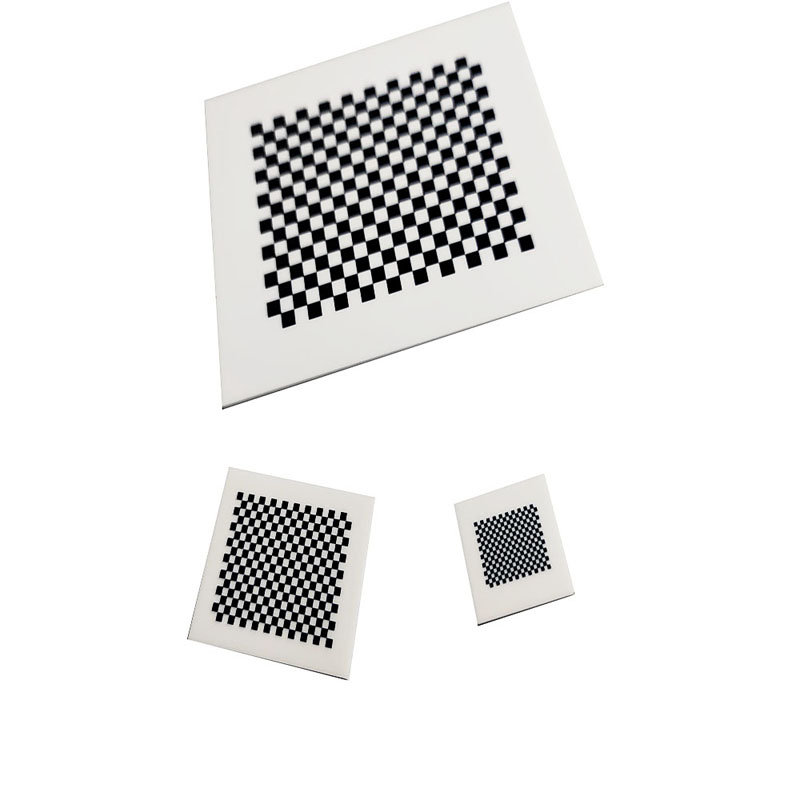

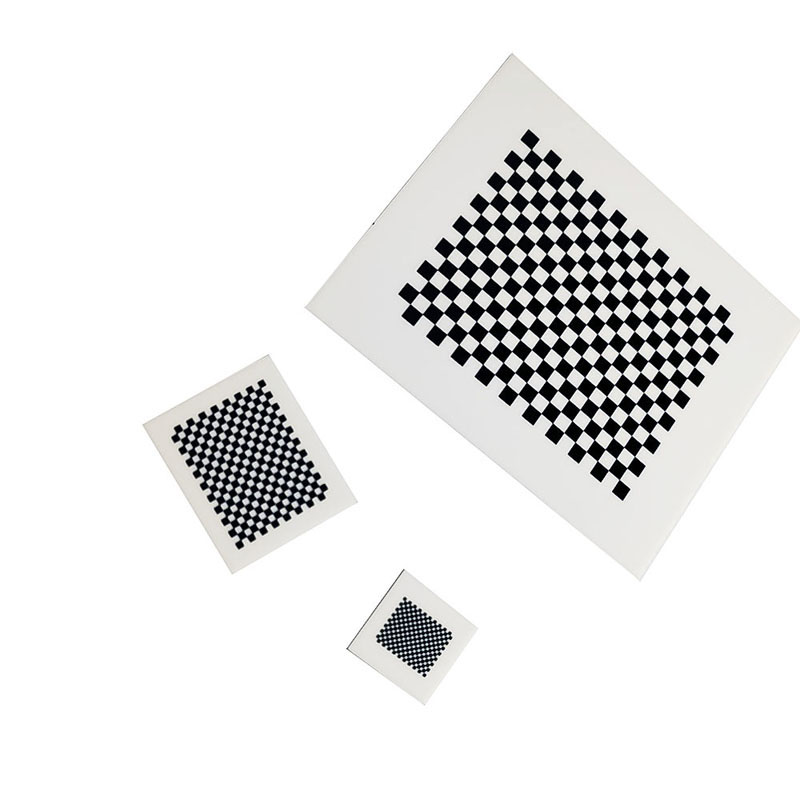

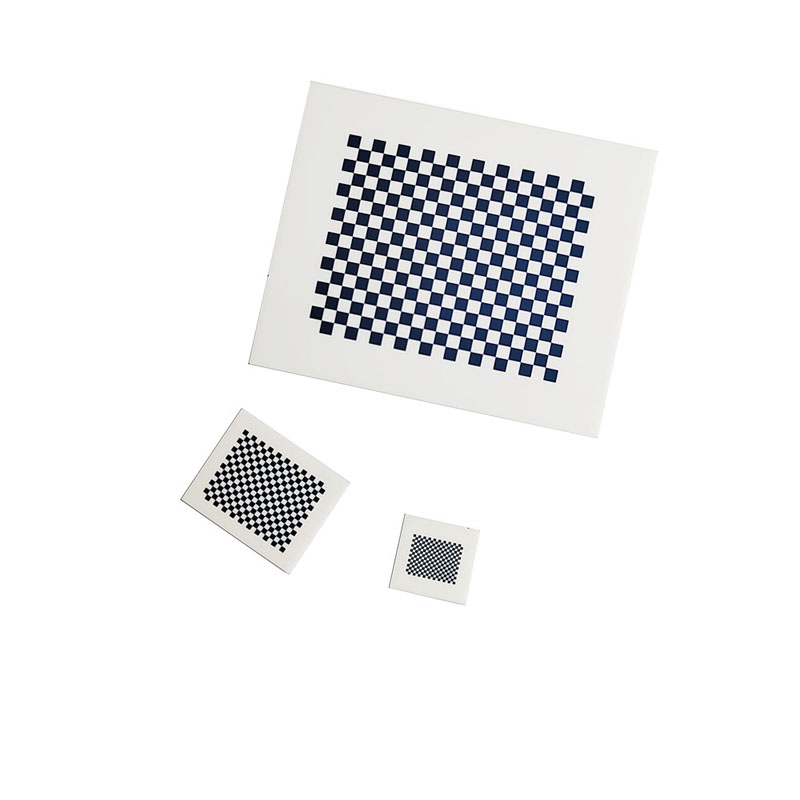

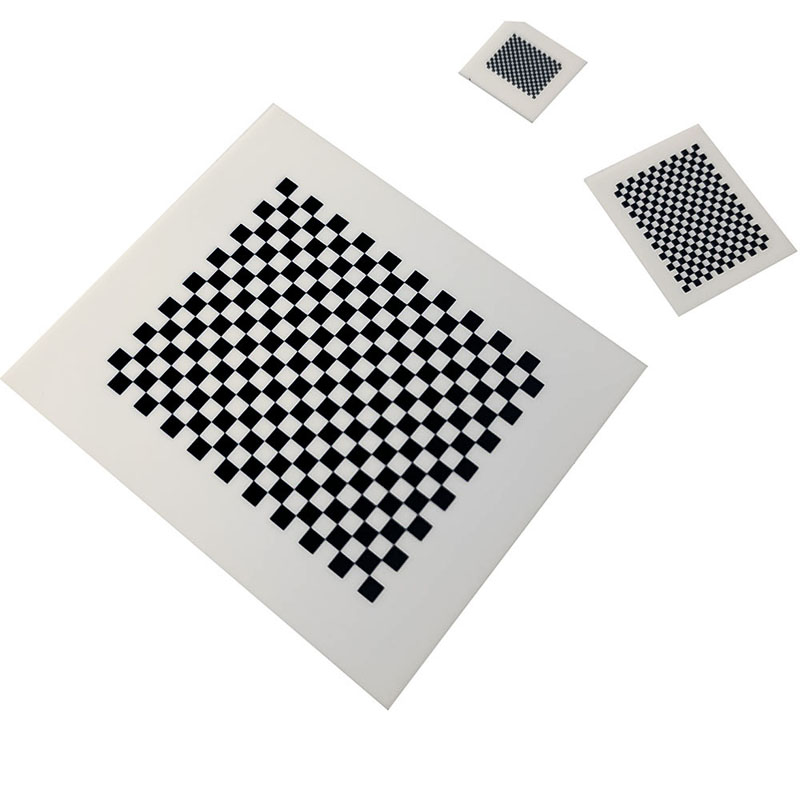

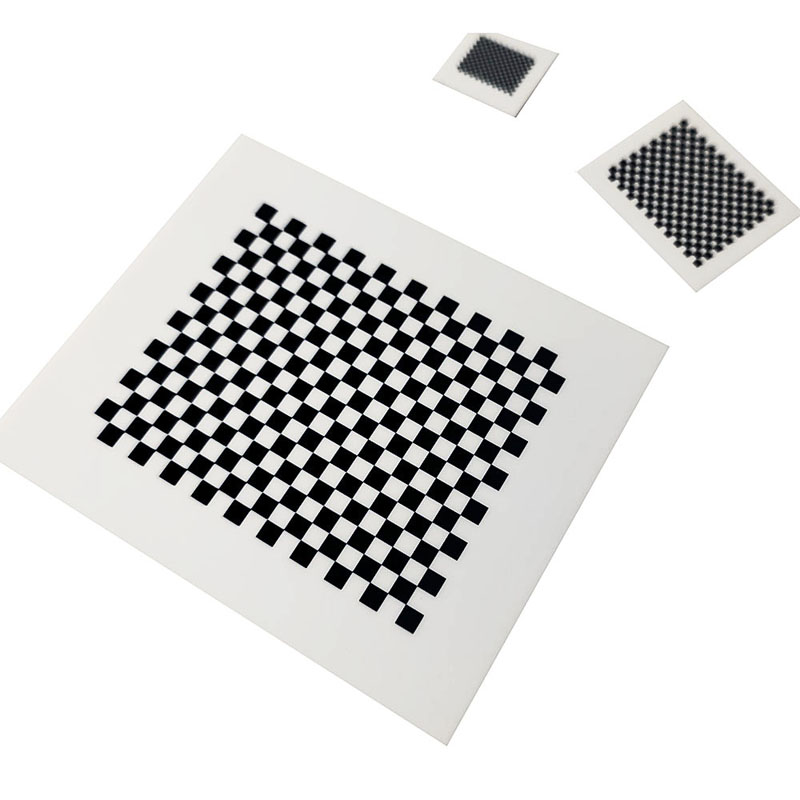

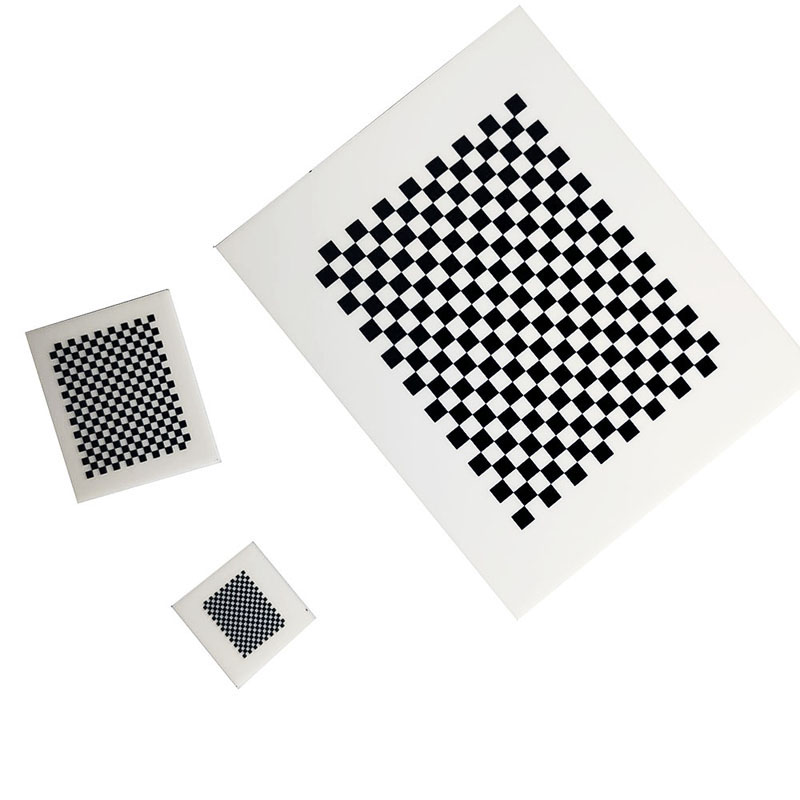

OpenCV 15mm Ceramic Calibration Board

Zhixing is China manufacturer & supplier who mainly produces OpenCV 15mm Ceramic Calibration Board with many years of experience. Zhixing is a technology-based enterprise focusing on the research and development of optical devices. The founder of the company graduated from famous optoelectronic schools.Hope to build business relationship with you.

Zhixing is a professional manufacturer and supplier in China, which has rich experience in the production of OpenCV 15mm Ceramic Calibration Board, we have our own processing and production factory, the price is favorable, and we support the customization of various sizes, while ensuring high precision, to meet all requirements of customers, welcome to consult, look forward to working with you.


OpenCV 15mm Ceramic Calibration Board is a very important device in the medical industry, because it can calibrate and test medical devices, so that medical devices can provide effective diagnosis and treatment more accurately. With the continuous development of modern medical technology, the precision requirements of medical equipment are getting higher and higher, and the role of optical calibration board is becoming more and more important.


First, the OpenCV 15mm Ceramic Calibration Board can be used to calibrate cameras and displays in medical imaging equipment, ensuring the accuracy and accuracy of medical image imaging and display. For example, for X-ray machines or other imaging equipment, the use of OpenCV 15mm Ceramic Calibration Board can achieve the highest accuracy of the imaging results of the equipment, avoiding problems such as misdiagnosis or delayed treatment caused by inaccurate calibration. For measurement functions in optical devices, calibration boards also guarantee the accuracy and reproducibility of measurements.


Secondly, the OpenCV 15mm Ceramic Calibration Board can also be used for the calibration and testing of medical laser cutting equipment to ensure the accuracy and quality of the tissue cut by the laser. The application of laser technology in the field of modern medicine is more and more extensive, and the application of these technologies needs to ensure the accuracy and safety of the cutting tissue, and the use of optical calibration plates can effectively ensure these needs.


Finally, the OpenCV 15mm Ceramic Calibration Board can also be used in simulation experiments in the medical industry, such as surgical simulation. These experiments require the use of special equipment and tools to ensure the accuracy and effectiveness of the simulated surgical procedure. The reliability and accuracy of these simulation experiments can be ensured by using optical calibration board.


In short, the role of OpenCV 15mm Ceramic Calibration Board in the medical industry is very important to ensure the accuracy of equipment accuracy and treatment effects, but also to calibrate and test medical data to avoid problems such as misdiagnosis and delayed treatment. With the continuous development of medical technology, the role of optical calibration board will become more and more important.


Reference drawing

Feature:

Specifications Pattern size
(L*W)
Square side length
(Distance)
number of squares(one) material Precision
(mm)
OpenCV5mm 5.0*4.0mm 0.25*0.25mm 20*16 glass/ceramics ±0.001mm
OpenCV10mm 10*8mm 0.5*0.5mm 20*16 glass/ceramics ±0.001mm
OpenCV15mm 15*12mm 0.75*0.75mm 20*16 glass/ceramics ±0.001mm
OpenCV20mm 20*16mm 1.0*1.0mm 20*16 glass/ceramics ±0.001mm
OpenCV30mm 30*24mm 1.5*1.5mm 20*16 glass/ceramics ±0.001mm
OpenCV40mm 40*32mm 2.0*2.0mm 20*16 glass/ceramics ±0.001mm
OpenCV50mm 50*40mm 2.5*2.5mm 20*16 glass/ceramics ±0.001mm
OpenCV60mm 60*48mm 3.0*3.0mm 20*16 glass/ceramics ±0.001mm
OpenCV80mm 80*64mm 4.0*4.0mm 20*16 glass/ceramics ±0.001mm
OpenCV100mm 100*80mm 5.0*5.0mm 20*16 glass/ceramics ±0.001mm
OpenCV160mm 160*160mm 8.0*8.0mm 20*20 glass/ceramics ±0.001mm
OpenCV200mm 200*200mm 10.0*10.0mm 20*20 glass/ceramics ±0.001mm



Only some products are shown in the table, if you need other products,

you can consult customer service

Camera calibration principle reference

Exhibition photos


Customer FAQs

1. Can the calibration board be customized?

Answer: Yes


2. What kind of calibration plate do you have?

Answer: quartz glass, glass, ceramics, honeycomb aluminum, pure aluminum, acrylic, film


3. How do you define high-precision?

A: High precision refers to the accuracy of the distance error between the corners of the pattern


4. What precision can you do?

Answer: Calibration plates with different accuracy can be customized according to your needs. ± 0.001 mm/± 0.01 mm/± 0.1 mm

Materials are also the main factor determining the accuracy. Therefore, high-precision materials are glass, ceramics, quartz glass, and film, which can be used as calibration plates of different sizes. Medium precision materials can be used as glass, honeycomb aluminum, acrylic, and low precision materials can be used as glass, honeycomb aluminum, and pure aluminum.


5. I want to make high-precision products. What materials and sizes can I make?

A: Glass, ceramics, quartz glass and film. If you want to make more than 200mm, we suggest you make glass. It is the most practical and preferential material. If you cannot use reflective materials, we suggest you buy our  ceramic  calibration platewhich belongs to non reflective materials. ,or buy our self luminous calibration plate,  which can effectively prevent reflection,
