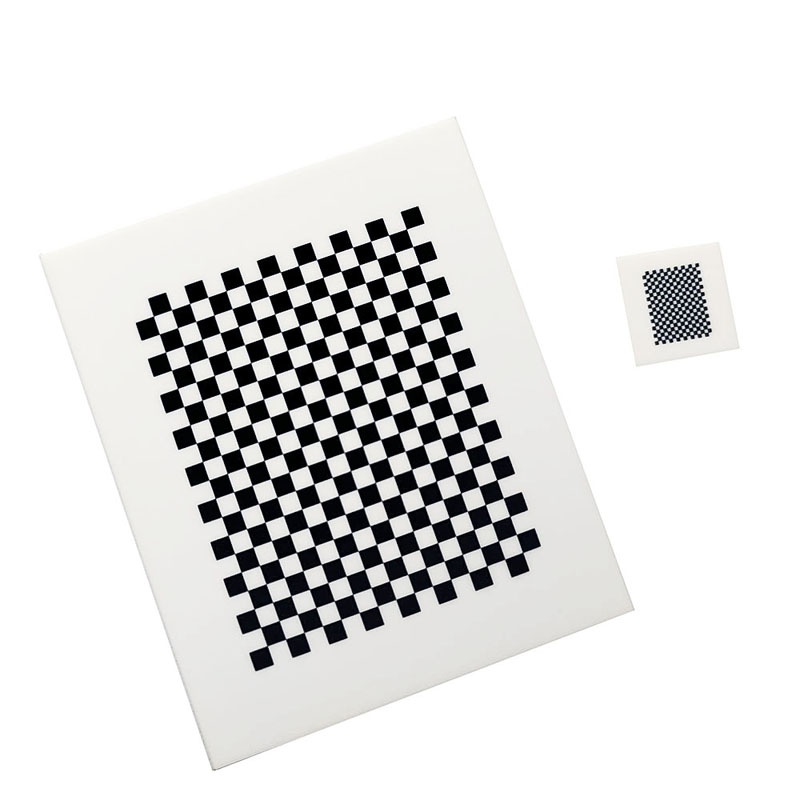

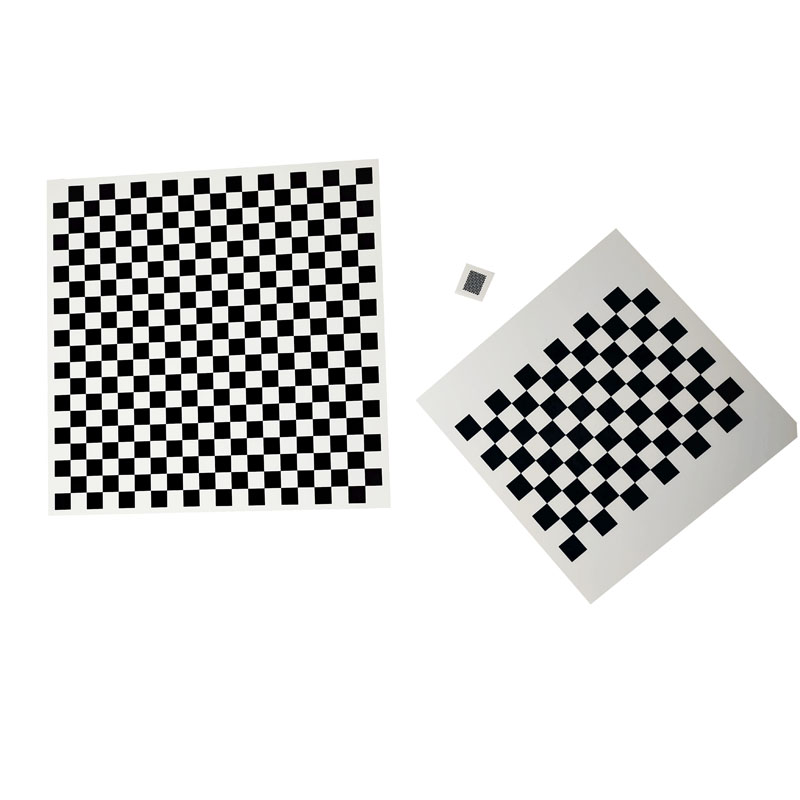

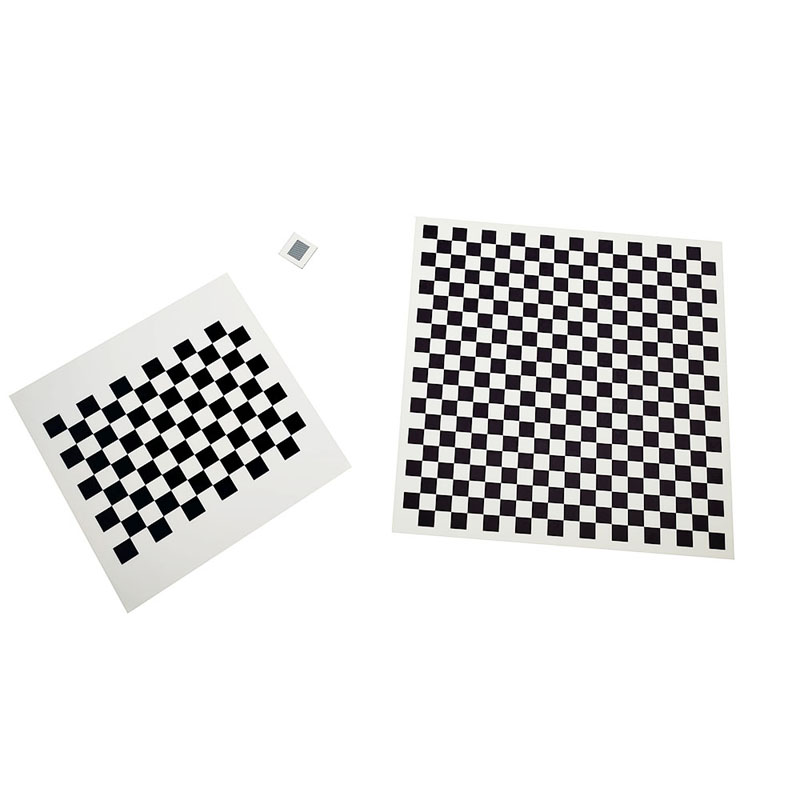

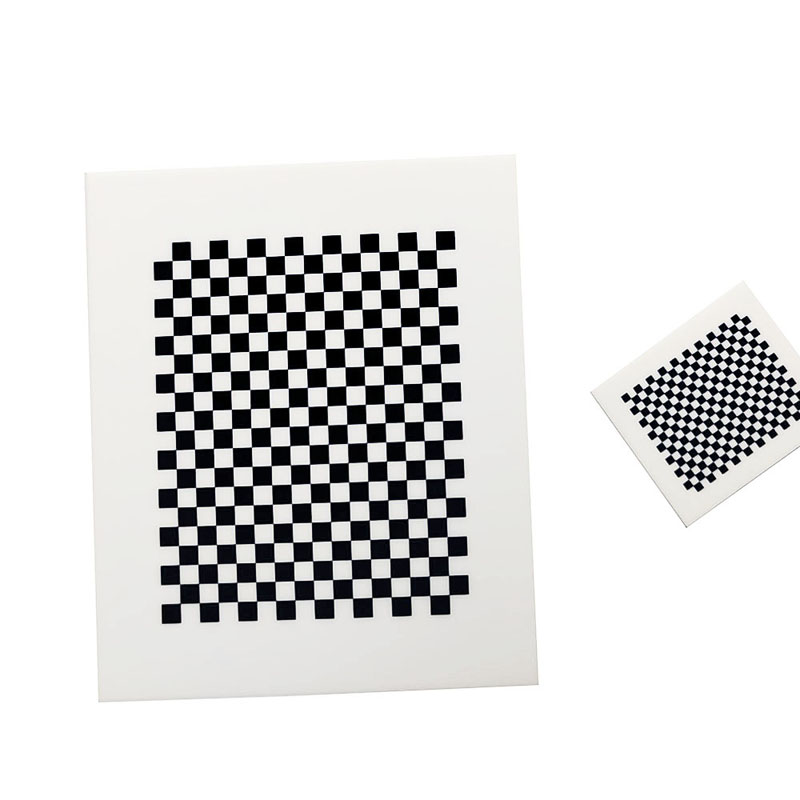

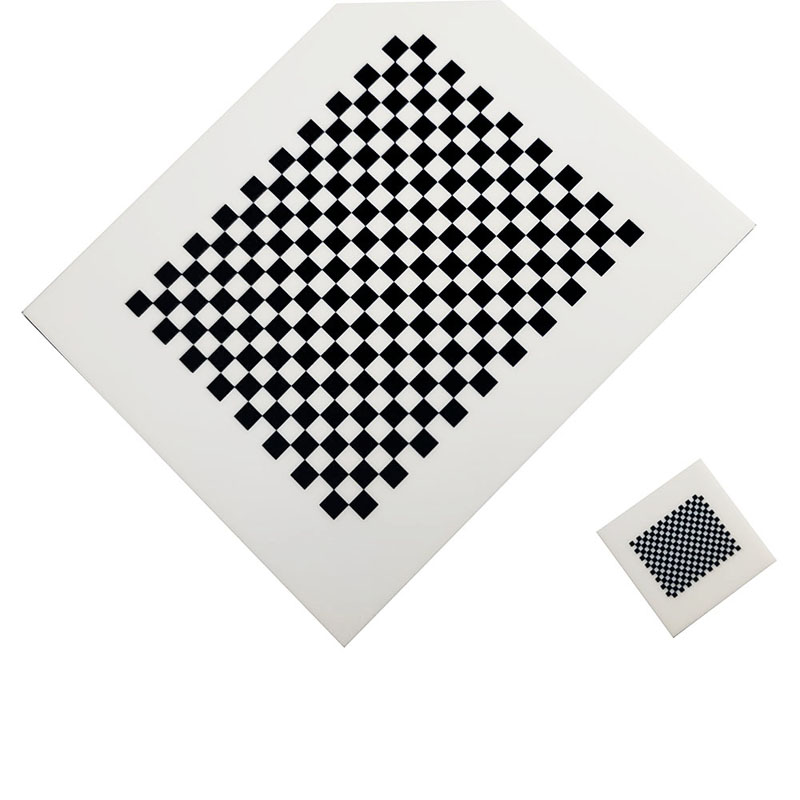

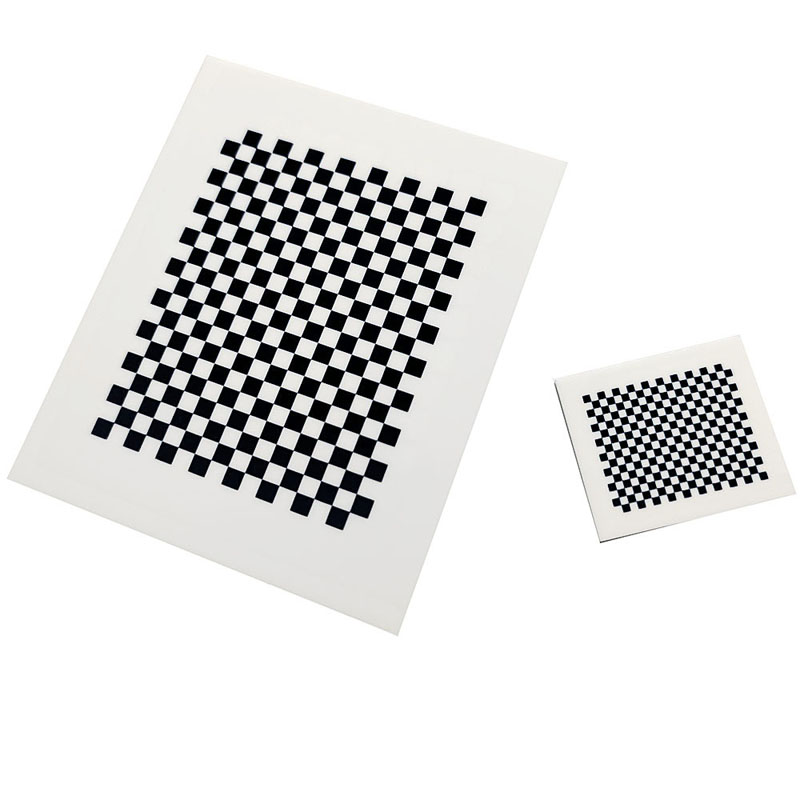

OpenCV 40mm Ceramic Calibration Board

You can rest assured of buying OpenCV 40mm Ceramic Calibration Board from our factory. Zhixing has rich experience in the production of calibration plate, we have our own processing and production factory, the price is favorable, and we support the customization of various sizes, while ensuring high precision, to meet all requirements of customers, welcome to consult, look forward to working with you.

As a professional high quality OpenCV 40mm Ceramic Calibration Board  manufacturer, you can rest assured to buy OpenCV 40mm Ceramic Calibration Board from Zhixing.


OpenCV 40mm Ceramic Calibration Board is a common precision instrument, widely used in the field of measurement and detection. It is an essential tool for calibrating and adjusting various optical devices such as cameras, cameras, telescopes, etc. It has a very wide range of applications and can play an important role in a variety of different areas, specifically as follows:


1. Industrial manufacturing

In the factory production process, the OpenCV 40mm Ceramic Calibration Board is often used to detect the parts on the production line, the initial installation of machine tools is accurate. In this field, optical calibration boards ensure precision and accuracy of parts and maintain the high quality of equipment.


2. Environmental and natural sciences

In the field of environmental and natural sciences, OpenCV 40mm Ceramic Calibration Board can be used for research in atmospheric physics, ecology, geography and other fields, and can more accurately analyze and record natural phenomena, such as weather, animals, plants and so on.


3. Medical Engineering

In medical engineering, OpenCV 40mm Ceramic Calibration Board can be used for the calibration and inspection of medical devices to ensure the accuracy and accuracy of medical records and inspection systems. For example, ophthalmic professionals can use calibration boards to calibrate and adjust ophthalmic devices.


4. Measurement and detection

In the field of navigation, measurement and inspection, OpenCV 40mm Ceramic Calibration Board can be used to determine and record the precise position and size of a target. For example, a positioning system equipped with a canine tooth calibration board can precisely adjust the measuring distance in seconds.


The use of OpenCV 40mm Ceramic Calibration Board is very strict and requires careful operation, maintenance and maintenance. In normal use, the optical calibration board ensures accurate measurement of various vertical and horizontal lines, intersections and geometries. At the same time, the use of optical calibration boards can also be translated into a low-cost technical solution that can help organizations and enterprises optimize production and management processes.


Reference drawing

Feature:

Specifications Pattern size
(L*W)
Square side length
(Distance)
number of squares(one) material Precision
(mm)
OpenCV5mm 5.0*4.0mm 0.25*0.25mm 20*16 glass/ceramics ±0.001mm
OpenCV10mm 10*8mm 0.5*0.5mm 20*16 glass/ceramics ±0.001mm
OpenCV15mm 15*12mm 0.75*0.75mm 20*16 glass/ceramics ±0.001mm
OpenCV20mm 20*16mm 1.0*1.0mm 20*16 glass/ceramics ±0.001mm
OpenCV30mm 30*24mm 1.5*1.5mm 20*16 glass/ceramics ±0.001mm
OpenCV40mm 40*32mm 2.0*2.0mm 20*16 glass/ceramics ±0.001mm
OpenCV50mm 50*40mm 2.5*2.5mm 20*16 glass/ceramics ±0.001mm
OpenCV60mm 60*48mm 3.0*3.0mm 20*16 glass/ceramics ±0.001mm
OpenCV80mm 80*64mm 4.0*4.0mm 20*16 glass/ceramics ±0.001mm
OpenCV100mm 100*80mm 5.0*5.0mm 20*16 glass/ceramics ±0.001mm
OpenCV160mm 160*160mm 8.0*8.0mm 20*20 glass/ceramics ±0.001mm
OpenCV200mm 200*200mm 10.0*10.0mm 20*20 glass/ceramics ±0.001mm


Overview

Essential details

Warranty:1 years

Customized support:OEM, ODM

Place of Origin:Zhejiang, China

Model Number:OpenCV40mm

Application:camera image calibration

Membrane color:Dark Blue

Accuracy:±0.001mm

Function:calibration

Package The:plastic box

What does precision represent? Look at the picture below.

Exhibition photos


Customer FAQ:

1. Can you customize it?

yes


2. How long can we deliver?

Generally, samples can be made and sent to you within 7-8 working days after you pay and confirm the drawings. One sample can be ordered at first. For details, you can consult the business manager to help you answer.


3. Can you deliver it to the designated warehouse for free?

The goods shall be delivered to the designated warehouse free of charge in China, and the expenses incurred can be negotiated according to the different weight of the goods.


4. Can you help me draw for free?

If you have your own drawings, it will be better to process them directly with your drawings, so as to avoid errors caused by communication. If you do not have drawings, we can also draw for you free of charge. The drawings can only be processed after you confirm them yourself, so as to avoid errors.
