Positive 1951 USAF Resolution Test Chart

Zhixing is a professional China Positive 1951 USAF Resolution Test Chart manufacturer and supplier.Intellectual property rights, breaking the monopoly of foreign counterparts in this technology. In the development of calibration boards, we have maintained long-term cooperation with many well-known enterprises at home and abroad.

Zhixing, a professional manufacturer, would like to provide you high quality Positive 1951 USAF Resolution Test Chart.

The Positive 1951 USAF Resolution Test Chart is a very important technology that plays an important role in the machine vision industry. This technology can make image acquisition and processing more accurate and efficient, thus improving production efficiency and quality.


First, the Positive 1951 USAF Resolution Test Chart can help machine vision systems obtain higher quality images. It can reflect light onto the image, making the image clearer, and can eliminate some interference factors on the image, so as to accurately detect and identify the target object. This is of great help to the automated processes in manufacturing, medical, logistics and other industries.


Secondly, the Positive 1951 USAF Resolution Test Chart can improve the speed and efficiency of image processing. It can ensure the premise of high resolution, while providing a more efficient data transmission rate, so that the machine vision system can process the image more quickly. This is important for businesses that require a lot of data processing.


Finally, the Positive 1951 USAF Resolution Test Chart can improve the precision and accuracy of machine vision systems. Because of its higher resolution and more accurate image processing capabilities, the machine vision system can analyze and judge the information in the image more accurately, which greatly improves its judgment accuracy.


In summary, the Positive 1951 USAF Resolution Test Chart plays a very important role in the machine vision industry, which can improve the image quality, improve the efficiency and speed of image processing, and improve the accuracy and precision of the machine vision system. This can facilitate the automation of enterprise processes, improve production efficiency and inspection accuracy, and bring a more reliable and efficient application experience to various industries.


Zhixing have rich experience in the production of calibration plate, we have our own processing and production factory, the price is favorable, and we support the customization of various sizes, while ensuring high precision, to meet all requirements of customers, welcome to consult, look forward to working with you.


Attributes

product name material grouping Accuracy
(um)
Resolution board Quartz glass 0-7 ±0.5
Resolution board Quartz glass -2-7 ±0.5
Resolution board Quartz glass 0-9 ±0.5
Resolution board Quartz glass -2-9 ±0.5



Only some products are shown in the table, if you need other products, you can consult customer service


Types of calibration boards

Material
distinction
Advantage shortcoming preservation method
Ceramics The advantages of ceramic calibration plate are non-reflective and high contrast. Restricted by material, the maximum pattern is 200*200mm, the material is expensive, it is difficult to process with high precision, and the rejection rate is high. Take it lightly.Prevent sharp objects from stabbing the layer.Put in the storage box when not in use.Prevents stains from spreading on surfaces
Glass The advantage of the glass calibration plate is that it can process high-precision 690*590mm patterns with high precision, the processing technology is much more mature than that of ceramics, and the price is cost-effective. Reflective and
fragile
Take it lightly.Prevent sharp objects from stabbing the layer.Put in the storage box when not in use.Prevents stains from spreading on surfaces

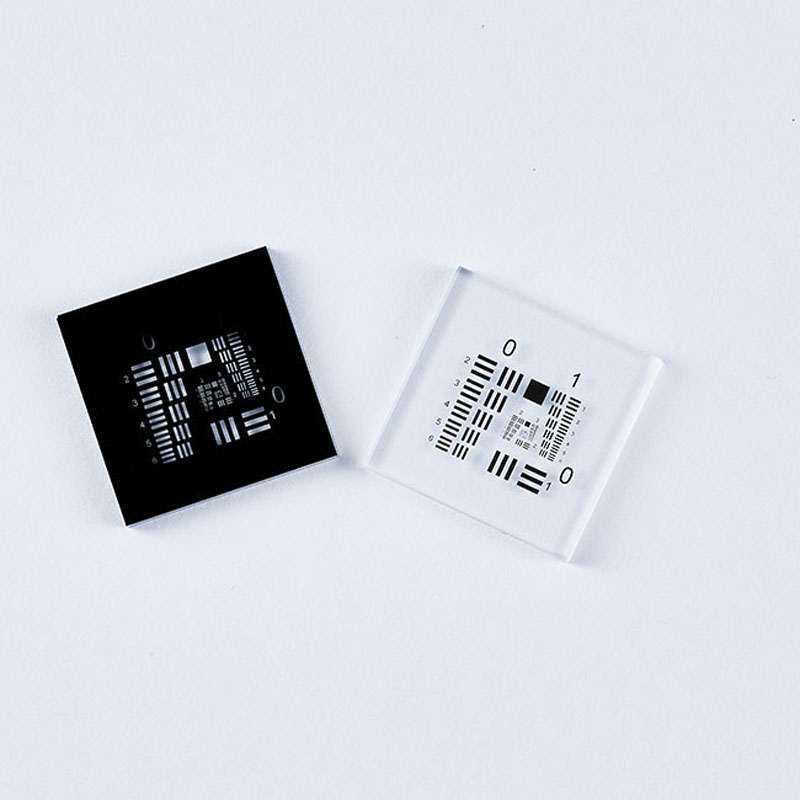

Quartz glass resolution board product display

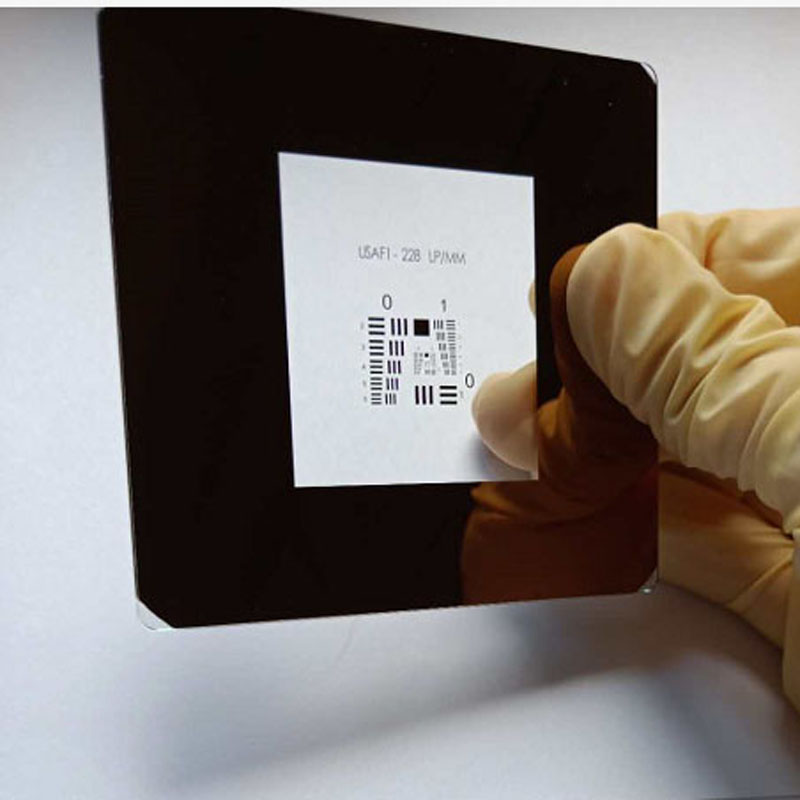

Physical display of products on white background and black image resolution chart board

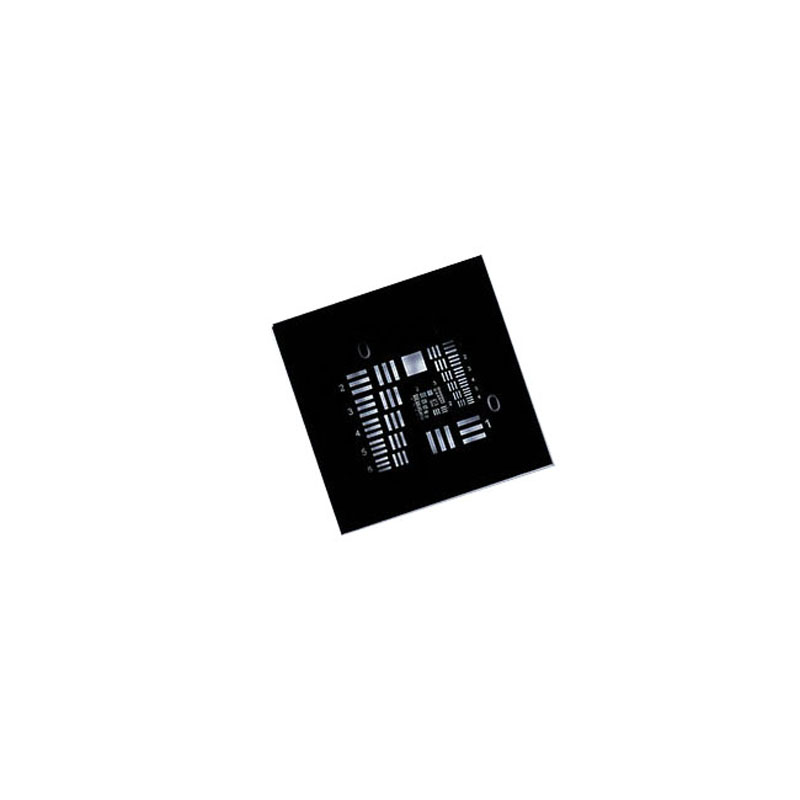

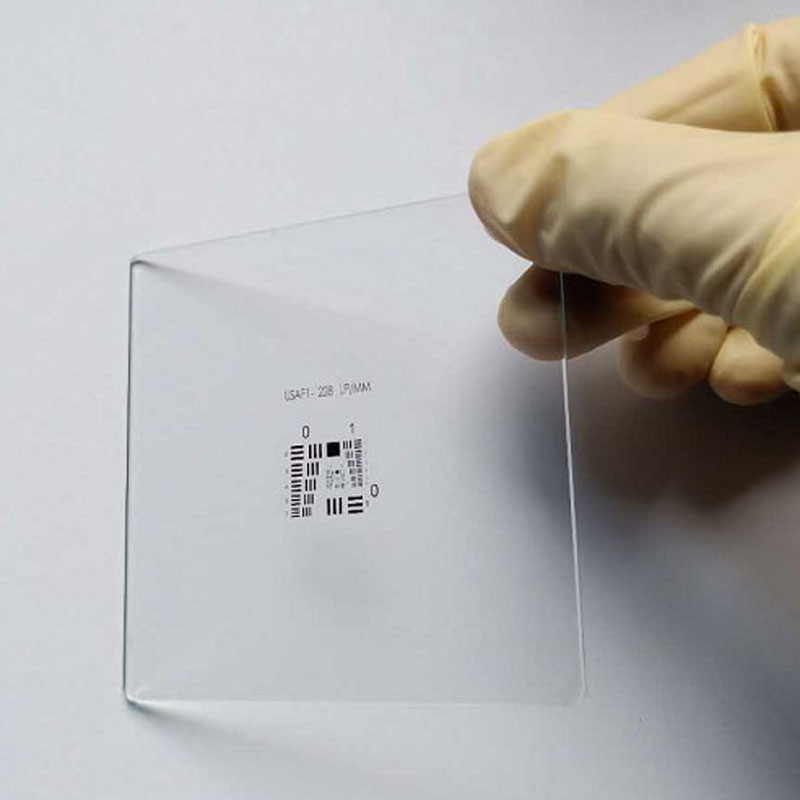

Transparent image black background quartz glass resolution chart board product display

Positive 1951 USAF Resolution Test Chart, also called resolution force plate, this product is designed according to the U.S. military standard MIL-STD-150A contrast specification. For the USAF 1951 pattern, its different resolution units use corresponding group and unit marks, and the corresponding resolution of each unit can be obtained by looking up the table. Customers can choose positive films of different base materials according to their needs (dark patterns, light background) and negative (dark background, light pattern).

Positive 1951 USAF Resolution Test Chart is widely used in the manufacture and production of complex optical systems in aviation, aerospace and astronomical telephoto to optical products commonly used in daily life. It is not only suitable for the imaging quality evaluation of various optical instruments and equipment (such as microscopes, collimator tubes and telescopes, etc.), but also very suitable for various types of lenses and optical components (such as aerial reconnaissance lenses, industrial lenses, aerial surveying and mapping lenses) , projection objective lens, microscope objective lens, camera lens, camera lens and industrial camera lens, etc.) imaging quality evaluation.
