Zhixing is a professional leader China Glass Discrimination Target manufacturer with high quality and reasonable price. The Glass Discrimination Target can meet many applications, if you need, please get our online timely service about Glass Discrimination Target. In addition to the product list below, you can also customize your own unique Glass Discrimination Target according to your specific needs.
Zhixing, a professional manufacturer, would like to provide you high quality Glass Discrimination Target.
The Glass Discrimination Target is usually a metal sheet product made with a chemical etching process, also known as an infrared target or simulated target. The target is a large area target array composed of multiple target elements and a host computer. Suitable for simulating large area infrared target simulation or remote infrared target measurement.
The Glass Discrimination Target is mainly used in military, scientific research and other fields. Suitable for indoor, outdoor and Marine environments. It provides a large size infrared simulation target for the test of infrared systems and other infrared optical instruments in modern weapons and equipment.
Zhixing has rich experience in the production of targets, we have our own processing and production plant, the price is favorable, and we support the customization of various sizes, while ensuring high precision, to meet all requirements of customers, welcome to consult, look forward to working with you.
Product characteristics
The Glass Discrimination Target can be used to detect focusing errors, astigmatism and aberrations in optical systems.
Product specifications
Name
Material - Features
Accuracy
Glass Discrimination Target
Glass - high accuracy, stable performance
±0.001mm
Ceramic - diffuse reflection, high hardness, good contrast
The Glass Discrimination Target is a flat optical element located on the focal plane of the optical system, and there are various specific marks on it, which are used for aiming and measuring external objects.

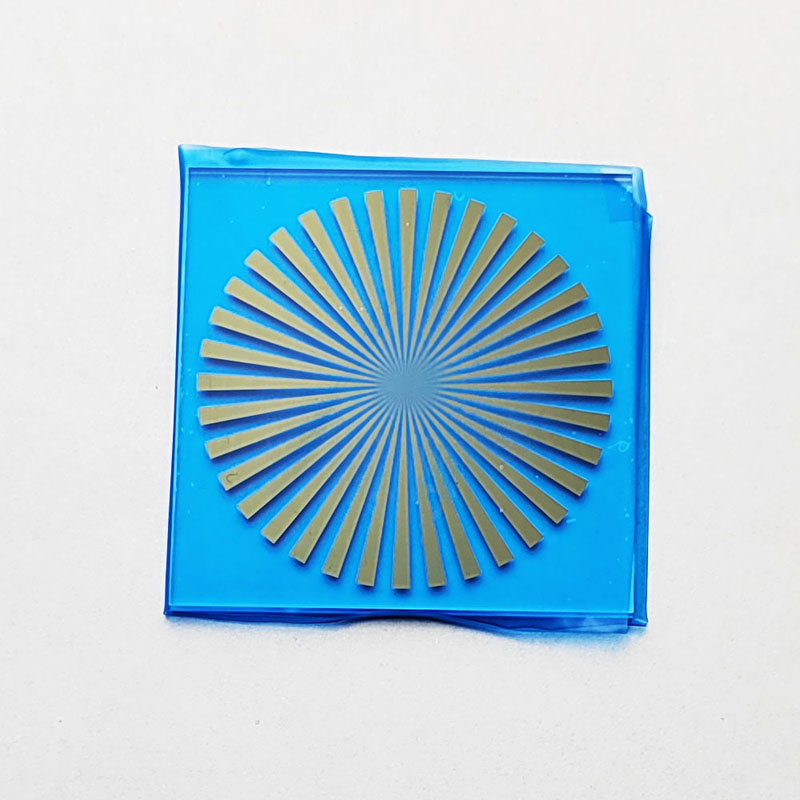

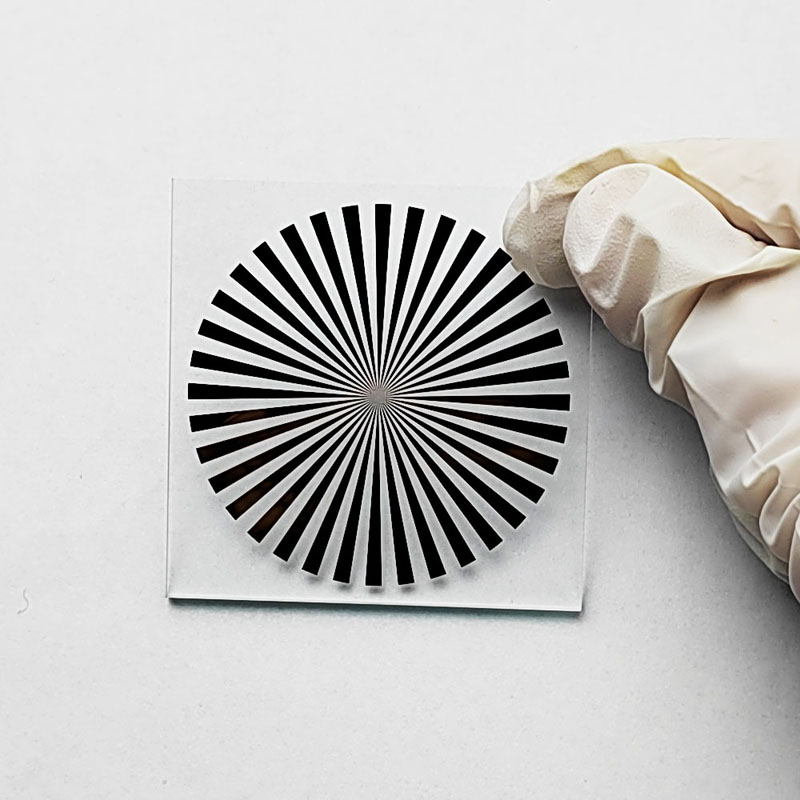

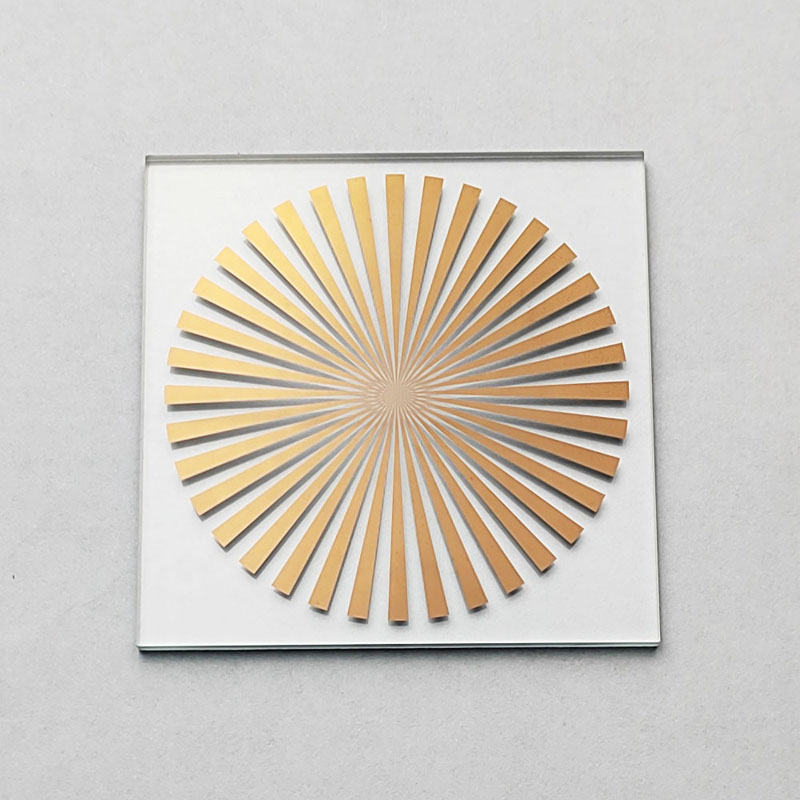

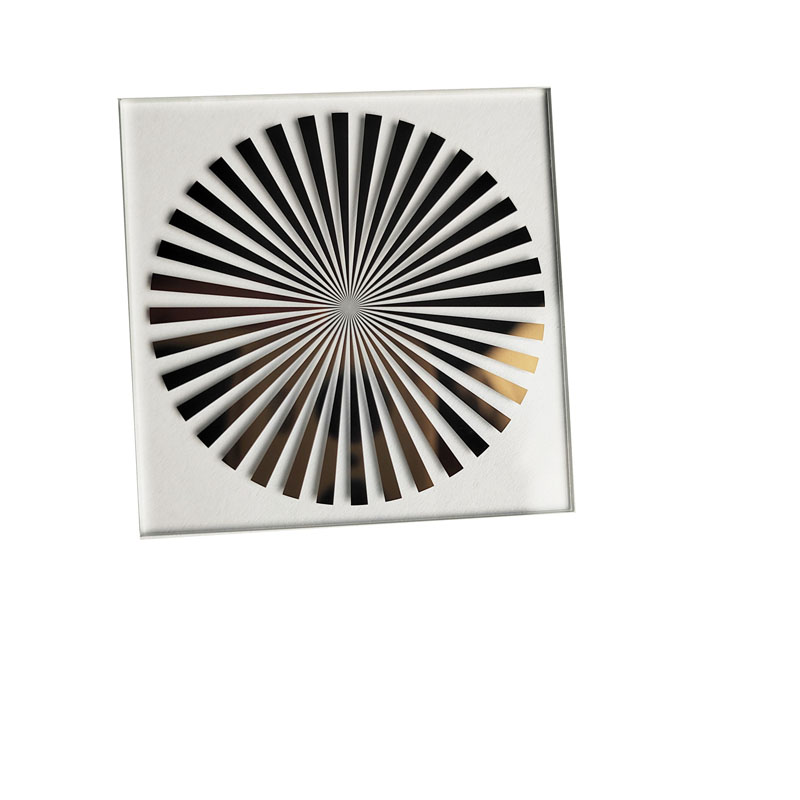

Physical display of fan-shaped target differentiation board products
Physical display of circular target differentiation plate products

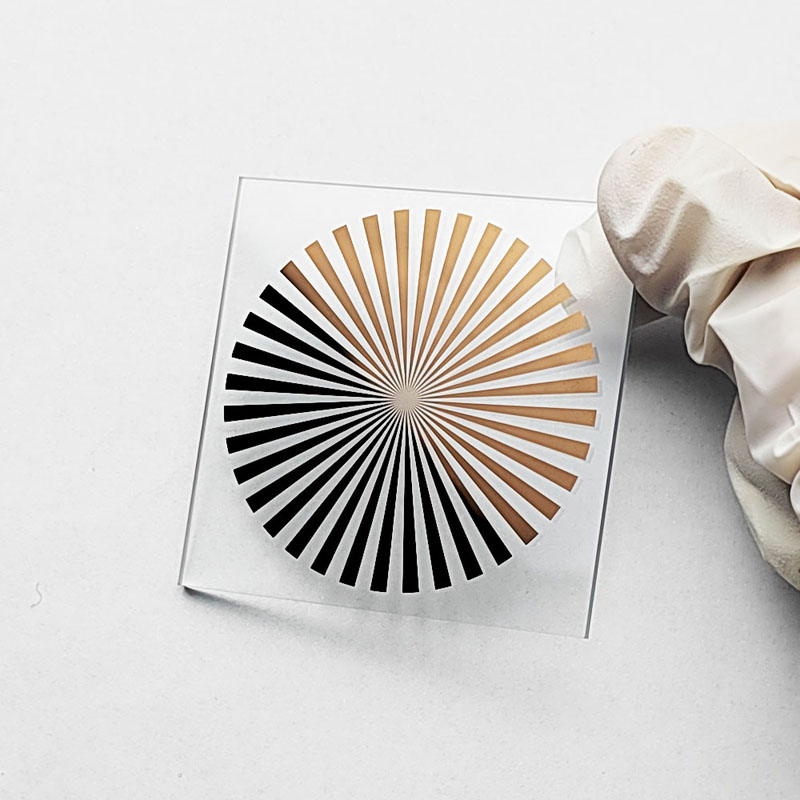

The actual sample display of the color of the membrane layer of the circular target differentiation plate
Standard manufacturing process: The glass substrate is polished, cleaned, post-coated, etc. The film layer is firm, and there are few defects in the post-production process.
The materials are all soda glass: the color of the Glass Discrimination Target used in Russia is silver; the color of the Glass Discrimination Target in Germany and Austria is blue; the color of the Glass Discrimination Target in the United States and Japan is yellow. This color is determined by the coating process, and the quality of the calibration board cannot be judged by color alone.
Quartz material, the material has good light transmittance, advantages: small expansion coefficient. In the process of calibrating the instrument, it is less affected by the ambient temperature. The corresponding cost is also high. Quartz material is divided into JGS1 and JGS2. JGS1 is expensive. JGS2 is relatively cheap and has air bubbles inside.
For inquiries about Machine Vision Calibration Board, Optical Glass Line Ruler, Photomask or price list, please leave your email to us and we will be in touch within 24 hours.
