Zhixing has rich experience in the production of Halcon 12-17 Ceramic Negative Calibration Board, in China we have our own factory and perfect production process, excellent production technology and professional production equipment, while ensuring high precision, price concessions, looking forward to cooperating with you.
Halcon 12-17 Ceramic Negative Calibration Board is a common optical calibration tool, which can help us adjust the parameters of various optical devices accurately, so as to obtain more accurate image effect. The construction of this Halcon 12-17 Ceramic Negative Calibration Board is very simple, it is composed of many small hexagons, which have different sizes and different orientations, forming a unique asymmetric pattern. This pattern can be used in a variety of optical devices, including cameras, telescopes, microscopes, and more.
The use of Halcon 12-17 Ceramic Negative Calibration Board can bring many benefits. First of all, it helps us to accurately set the focal length and aperture of the camera, so as to obtain the best image clarity and brightness. Secondly, it can help us determine the image distortion of the camera, so as to help us in post-processing.
The use of the calibration board is also very simple. We just need to place the Halcon 12-17 Ceramic Negative Calibration Board in front of the optical device to be calibrated and take a picture. In this photo, we can clearly see each hexagon of the honeycomb asymmetrical pattern, and by analyzing the shape and size of these hexagons, we can determine whether the parameters of the device are correct. If necessary, we can adjust various parameters to make the pattern more symmetrical, so as to obtain a more accurate image effect.
In summary, the Halcon 12-17 Ceramic Negative Calibration Board is a very practical optical tool that can help us get the best image results. In the process of use, we should carefully learn the use of the calibration board, as far as possible to reduce the error, in order to obtain more accurate results.
Attribute:
| Product Name | texture of material | accuracy | coating |
| Optical calibration plate | ceramic | ±0.001mm | chromium |

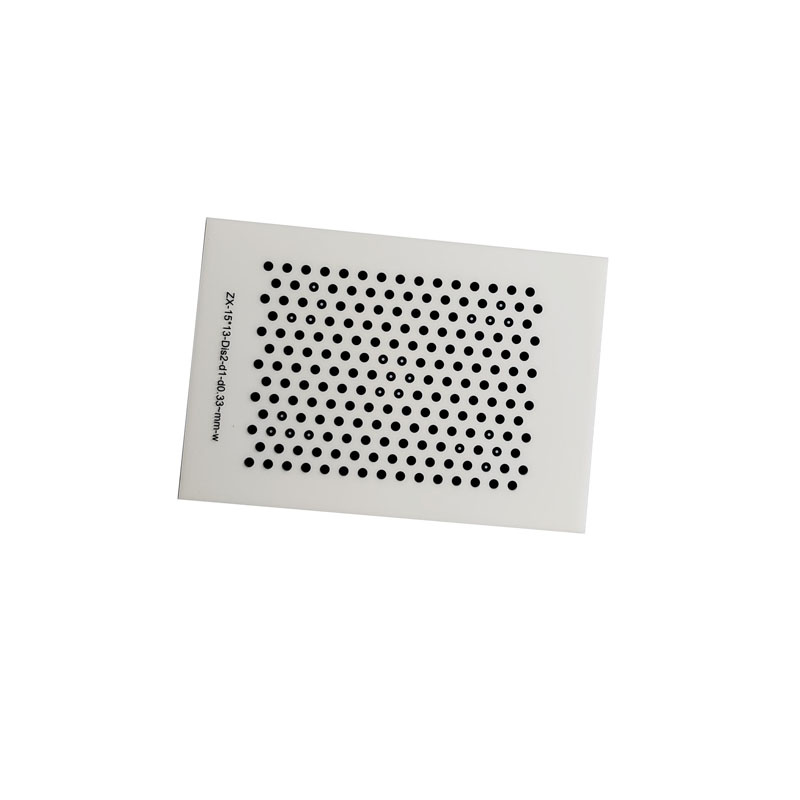

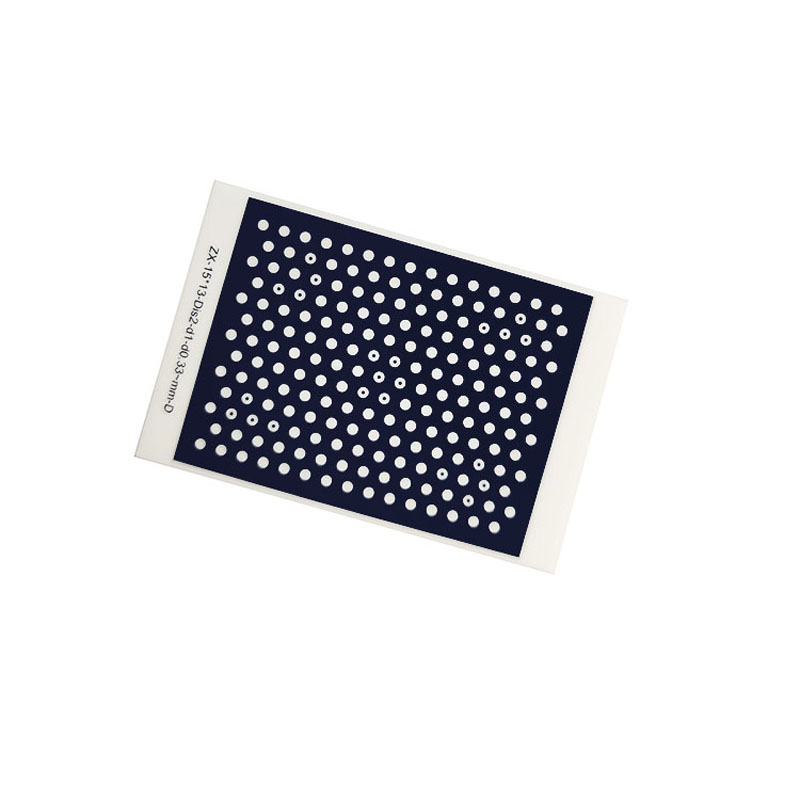

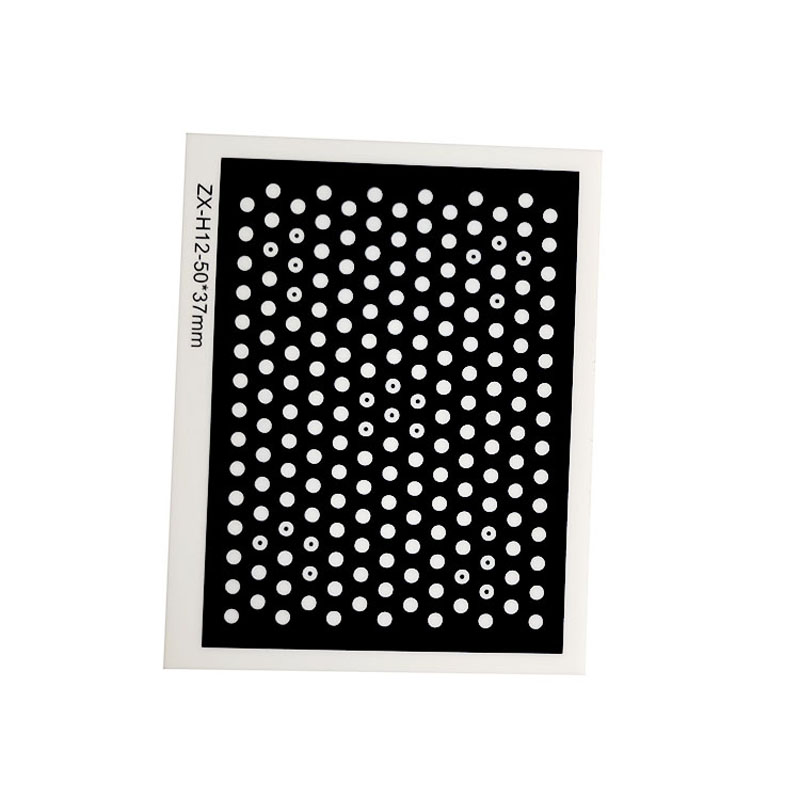

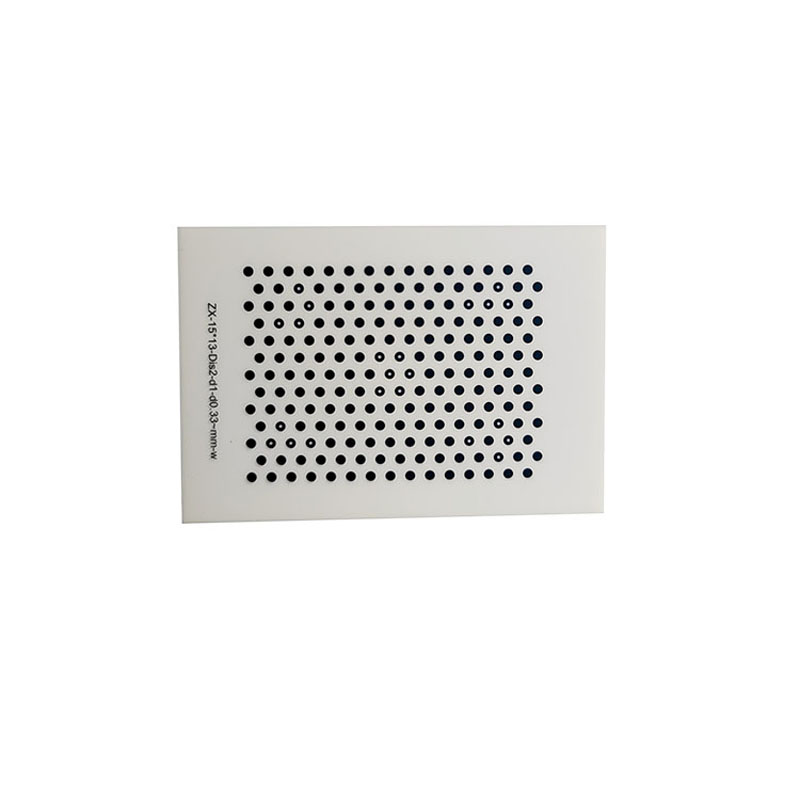

The calibration plates of Halcon12 and above use different patterns. Interlaced dots
Essential details
Warranty:7 days
Customized support:ODM
Place of Origin:Zhejiang, China
Product Name:Ceramics optical instruments
Material:Ceramics
Color:White,See through
Precision:±0.001
Characteristic:Fragile
Function:Measurement
Type:Transparent
Weight:60G
About materials and precision: ceramics/glass; ±1um
About models: There are many models available in stock. If you don't have the model you like, you can also provide drawings to customize for you!
Application fields: machine vision, 3D reconstruction, image processing, camera calibration, universities, PCB SMT industry research institutes, measurement institutes and other automation equipment
About packaging: optical shock proof box, with protective film inside, free of dust cloth. There is a carton shock proof bubble pad outside. Pay attention to details, one by one, not easy to scratch, not easy to break, do our best to make you satisfied!
About delivery and logistics: inventory of standard products -- delivery within 48 hours after placing an order
Calibration scene
Exhibition photos
